Engine Mounts

Post  wickettoby1 on July 1st 2018, 9:34 pm

I need to make some custom engine mounts for my 545 project. Does anyone care to share their custom engine mount pictures or ideas. If their rubber, poly, or solid I don’t discriminate.

Justin

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  Mike R on July 1st 2018, 11:50 pm

Motor plates, they allow you to place it anywhere and give lots of header room

Mike R

Posts : 1304
Join date : 2009-08-05
Age : 57
Location : St Paul Mn

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 1st 2018, 11:59 pm

Thanks for the words of wisdom Mike but it doesn't really answer the question that I asked.

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  Slowride on July 2nd 2018, 12:47 am

Can't help with drawings and dimensions, but I used a prefabbed kit from Tinman and modified it to put the 545 in my '32.
http://www.tinmanfabrication.com/index.cfm/page/ptype=product/product_id=90/prd90.htm

A little different angle

Slowride

Posts : 13
Join date : 2017-11-08

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 2nd 2018, 1:04 am

Thanks for the info Tinman

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  jeffgfg on July 2nd 2018, 8:36 am

Speedway motors..has mounts for 99.00 they work great.

jeffgfg

Posts : 316
Join date : 2010-02-06

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 2nd 2018, 9:39 am

Thanks for the heads up Jeff

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  Doug Rahn on July 2nd 2018, 9:52 am

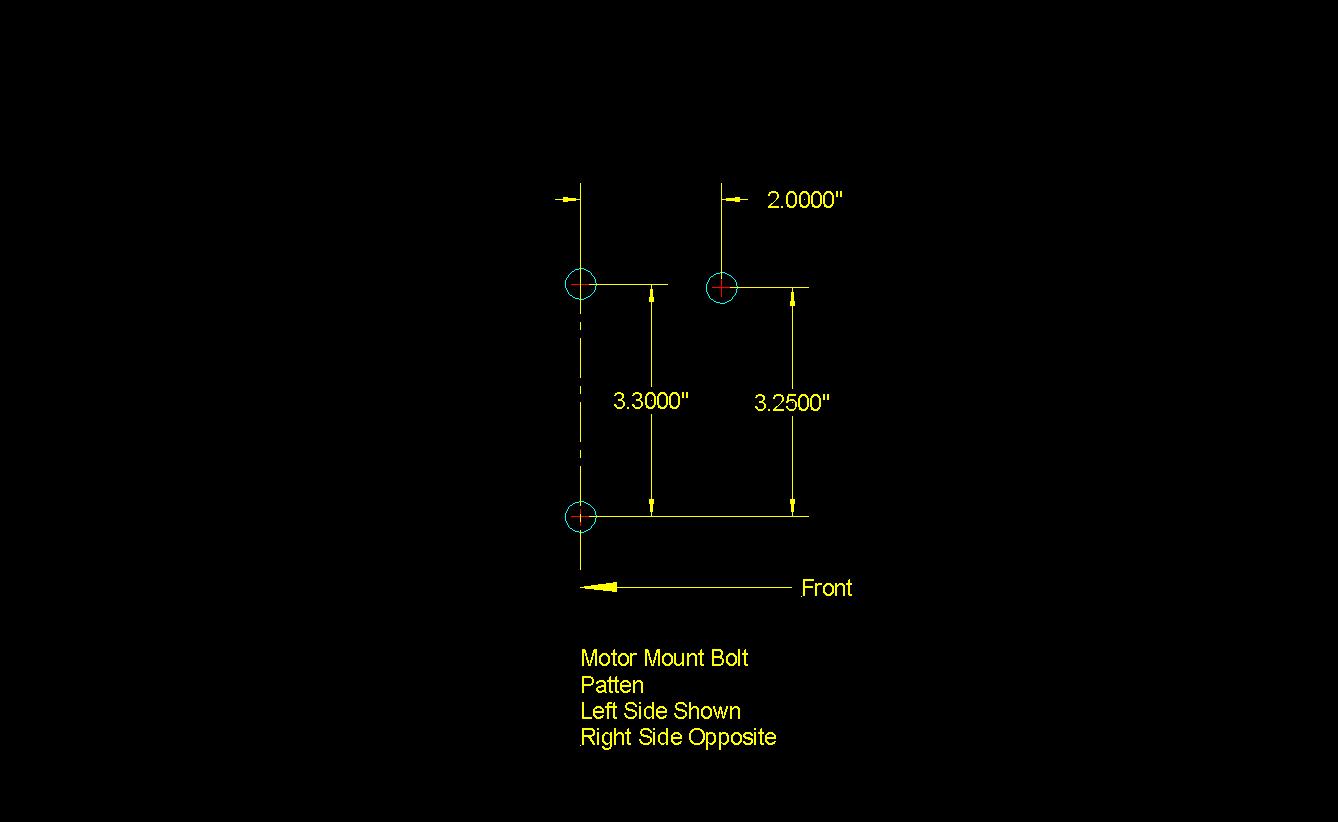

All I can offer are the dimensions of the bolt pattern in the block sides.

avatar
Doug Rahn
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 1670
Join date : 2009-08-07
Age : 67
Location : Springfield, GA

View user profile http://www.cardomain.com/ride/228081

Back to top Go down

Re: Engine Mounts

Post  Slowride on July 3rd 2018, 9:42 pm

I looked at a LOT of mounts and went with the Tinman mounts for a couple reasons. I wanted the bushings (pivot points) as close to the frame rail as I could for clearance and reduce the rotation from torque. I wasn't fond of the Speedway bracket off the rail as it didn't look strong enough. Probably just me and a case of overkill, but what I would have saved with the Speedway mount I would have more than spent modifying brackets and headers.

Slowride

Posts : 13
Join date : 2017-11-08

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 3rd 2018, 10:00 pm

I like the design of the Tinman mounts they just won't work for my particular application.

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  jbozzelle on July 4th 2018, 10:09 am

wickettoby1 wrote:I like the design of the Tinman mounts they just won't work for my particular application.

What is your particular application? Post up details and maybe someone can point you in the right direction.

jbozzelle

Posts : 3605
Join date : 2009-08-10
Age : 44
Location : New Orleans

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 4th 2018, 10:17 am

It's a 1964 Galaxie with a TKO behind it and before anyone says "just buy the Crites mounts" I already have the Crites mounts and dont really care for them.

Justin


Last edited by wickettoby1 on July 4th 2018, 9:07 pm; edited 1 time in total

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  BBFTorino on July 4th 2018, 8:19 pm

There are a lot of Crites products that are junk and don't fit very well, or at all.

BBFTorino

Posts : 600
Join date : 2015-12-31

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 4th 2018, 9:05 pm

When I bought my Crites mounts i waited several weeks to get them even though every time I called they said "their shipping today". Then when I did finally receive them they sent 2 right side mounts. I called and told them that id be there in the morning (after a 3 hr drive) and that id like to have a conversation with the owner. When i arrived the owner wasn't there and when I gave them my extra right side mount to exchange for a left they came back with another right side mount. Apparently the left and right mount bins were both filled with right side mounts. I had to wait while they made me a left side mount. After that i said id never buy another product from them. I'll get off of my soapbox now Wink

Justin

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  Doug Rahn on July 5th 2018, 8:27 am

What style engine mount are you looking for?
avatar
Doug Rahn
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 1670
Join date : 2009-08-07
Age : 67
Location : Springfield, GA

View user profile http://www.cardomain.com/ride/228081

Back to top Go down

Re: Engine Mounts

Post  jasonf on July 5th 2018, 10:10 am

I have a 64 Galaxie as well so whatever you come up with please share it.
avatar
jasonf
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 2808
Join date : 2009-07-14
Age : 49
Location : Lafayette, LA

View user profile

Back to top Go down

Re: Engine Mounts

Post  wickettoby1 on July 5th 2018, 10:43 am

I'll probably end up going with a solid mount because the 545 that I'm putting together is gonna make quite a bit of hp and torque for a street car.

The '64 Galaxie has a perch on each side that sits on the crossmember under the engine. The perch has a hole in it for a threaded stud to go through then a nut and washer go on the bottom side.

I'll take a pic and post it later today.

wickettoby1

Posts : 102
Join date : 2016-02-02
Location : SE Michigan

View user profile

Back to top Go down

Re: Engine Mounts

Post  Doug Rahn on July 5th 2018, 11:20 am

wickettoby1 wrote:I'll probably end up going with a solid mount because the 545 that I'm putting together is gonna make quite a bit of hp and torque for a street car.

The '64 Galaxie has a perch on each side that sits on the crossmember under the engine. The perch has a hole in it for a threaded stud to go through then a nut and washer go on the bottom side.

I'll take a pic and post it later today.

Okay. Knowing that the factory mounts bolt to the cross-member, that was a similar deal on a 460 I setup for one of my nephews who had a '70's Ford Pickup. On that, I used the mount that Rod & Custom Motorsports has that they offer with their MII suspension Kits. It's available separately with many engines mounts, including the 460. It's a stanchion type, but instead of welding it directly to the cross- member, I welded it to some plate and boted that to the cross-member so it would also be removable. Worked really good and took a beating at the track. I found this similar setup on the web and as you can see they welded it to the cross-member.
