TFS Old Style Tunnel Ram Plenum Spacer
I got this tunnel ram from Lem many many moons ago. I thought it was going to get to run on the 840 hp 528" engine I dyno'd years back but we had some technical difficulties at the dyno session ( the builder forgot to surface the manifold so it didn't fit when Steve ( from Westch) and I went to swap it. Never made it back to the dyno)
Anyway, I've always thought the plenum to be kind of on the small side approx 290", so I made a spacer to increase the volume .

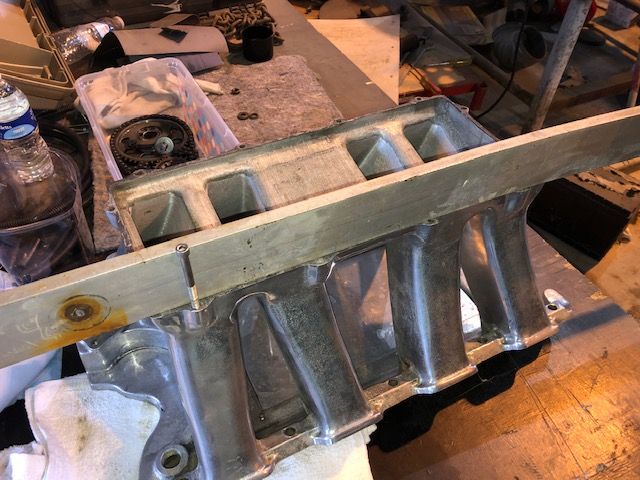

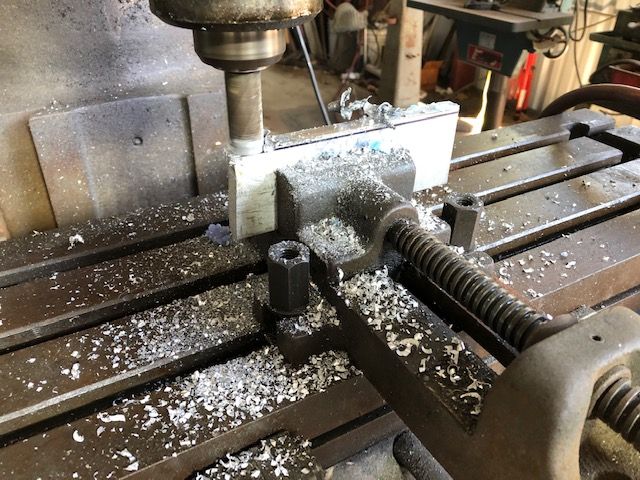

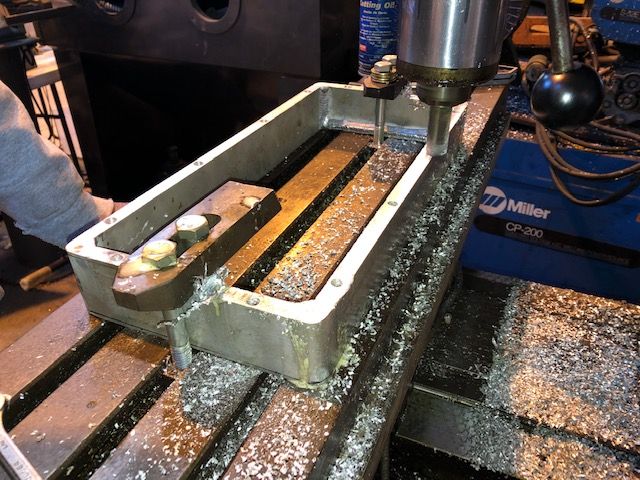

I "repurposed" some aluminum bar that was behind my dad's barn. I did the cutting and fitting, I had a friend weld it up and dad did the machine work ( on his antique Bridgeport). It started out at 2.5" tall and it was machined down to 2".
![TFS Old Style Tunnel Ram Plenum Spacer IMG_2644(1)](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_2644(1).jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_2797](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_2797.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_2967](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_2967.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_2987(1)](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_2987(1).jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_2998](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_2998.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_3113](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_3113.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_3178](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_3178.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_3168](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_3168.jpg?width=1920&height=1080&fit=bounds)

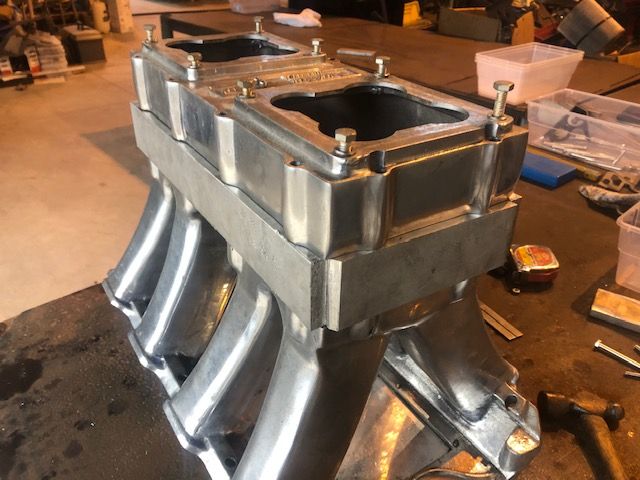

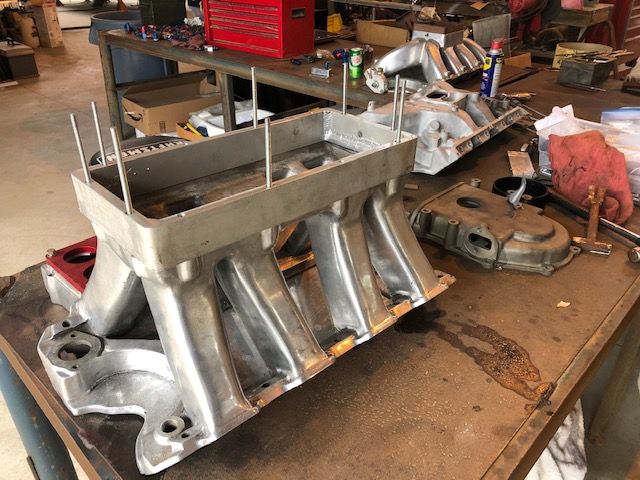

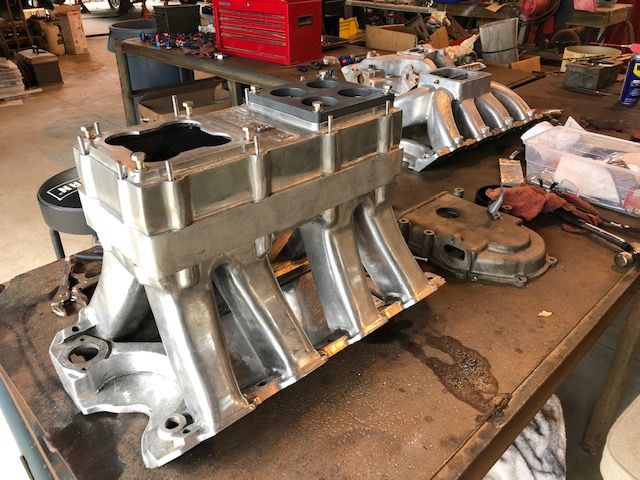

All done and ready for some dyno testing on the 565 later this year. If it works well I'll clean it up and maybe make a revised version of it. I now have the plenum area measuring approx 500". We'll see how it runs against the new style TR. Target power is 7,200 for the new TR,
![TFS Old Style Tunnel Ram Plenum Spacer IMG_3170](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_3170.jpg?width=1920&height=1080&fit=bounds)
G-Code- Posts : 189
Join date : 2010-07-12
Curt, J.Toney, cool40, Mark Miller and Paul Kane like this post
Re: TFS Old Style Tunnel Ram Plenum Spacer
Johnny Holmes Lives!
dfree383- BBF CONTRIBUTOR
- Posts : 14821
Join date : 2009-07-09
Location : Home Wif Da Wife.....
Re: TFS Old Style Tunnel Ram Plenum Spacer
I'd still love to have one on a build. Nice work!!!!
J.Toney- Posts : 398
Join date : 2009-08-18
Location : Kent CIty, MI
Re: TFS Old Style Tunnel Ram Plenum Spacer
Lem Evans wrote:Nice!
We'll see what happens here down the road. A/B test and see what happens.

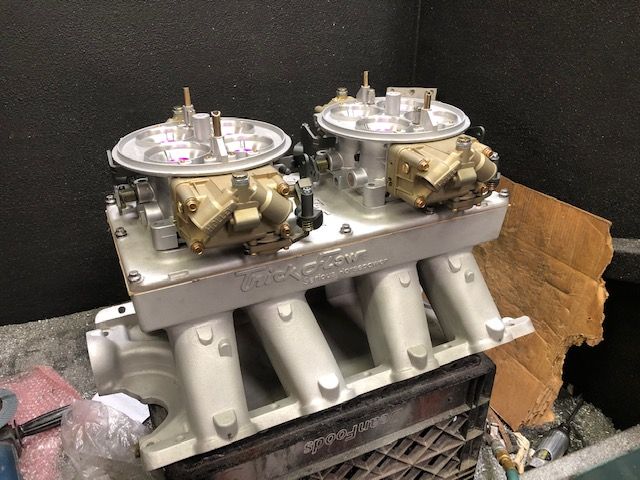

It will be topped off with these guys that I sent off a couple month back. They showed up on Tuesday. C&J Engineering ( here in So Cal rebuilt two of my 1,050's: I had him rebuilt them to my order: Progressive linkage with a PV in the primaries.
![TFS Old Style Tunnel Ram Plenum Spacer Updated_1050's](https://hosting.photobucket.com/images/aa150/Sleepercp/Updated_1050's.jpg?width=1920&height=1080&fit=bounds)
![TFS Old Style Tunnel Ram Plenum Spacer IMG_3515](https://hosting.photobucket.com/images/aa150/Sleepercp/IMG_3515.jpg?width=1920&height=1080&fit=bounds)
G-Code- Posts : 189
Join date : 2010-07-12
Mark Miller and 2 wicked like this post
