528" Pump gas engine 840HP

Post  G-Code on July 13th 2016, 5:33 pm


Built for a boat project that's not going to happen and it's just sitting collecting dust. Maybe it can find a good home.

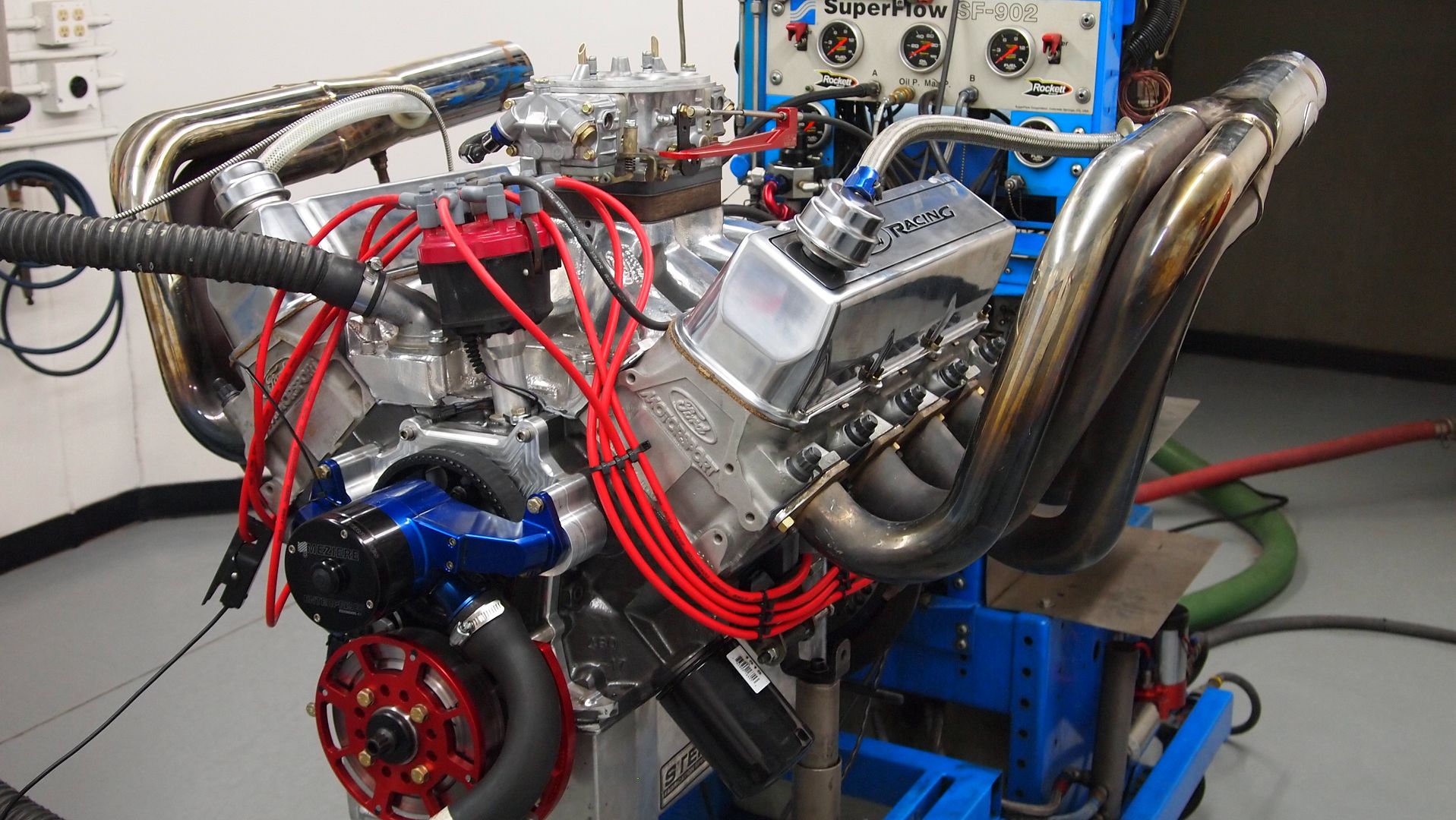

528” BBF ( 4.42x4.30) TFS A-460 heads 11.25:1 compression 840hp at 6,800, 700 lbs ft at 5,100 on 91 octane. Dyno’d at Westech
Engine has 14 dyno pulls on it. Professionally built by James Bostick Racing Engines ( El Cajon Ca) in 2013 for a race boat.

Parts list includes:
Dove A block .060 over 4.42 bore aftermarket 4 bolt main conversion ( Paul Kane)

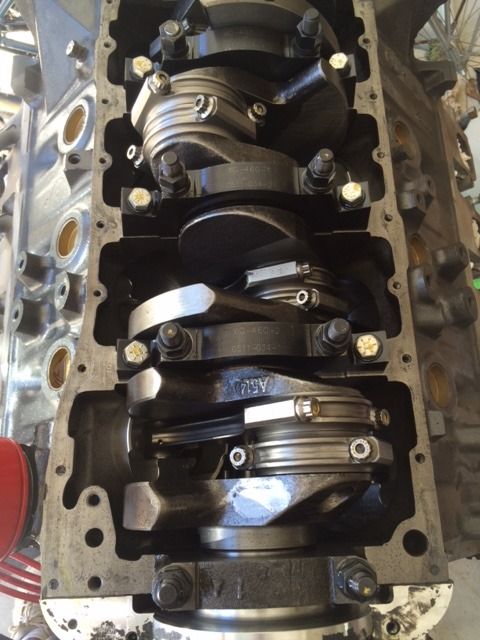

521" FRPP kit 4.30" stoke, Eagle rods,replaced SRP pistons with JE's to work with A-460 heads
'93 A-460 heads 2.3 intake heads flow 420 cfm at .750
Schneider solid roller: @ .050" 276-284 ( adv. 306-312) lobe lift .430int - .435ex, lobe sep 112
gross lift .744int .752 ex
Danny Bee belt drive, Crower Enduro Stainless rockers, Crower hippo solid roller lifters, Manton pushrods, Isky Tool room valve springs, MSD crank trigger, Jomar stud girdle and a few other good parts
Pump gas build to run 11:25:1 compression. Ran on 91 octane with 28* timing
#1 cly exhaust port has weld repair from a crack that had leaked water.

840 hp with 1,200 dominator, 810 hp with a 950HP carb.

Engine would cost $ 12,000+ to duplicate

$8,500 OBO without Carb









G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

engine

Post  hbstang on July 13th 2016, 6:02 pm

where is this located?
avatar
hbstang

Posts : 112
Join date : 2012-10-29
Location : socal

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on July 13th 2016, 6:07 pm

San Diego County .... East County

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on July 30th 2016, 1:37 pm


Engine still looking for a Good Home ......

Make an offer ....

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on August 20th 2016, 7:33 pm

Still looking for a new home ...

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  stanger68 on August 20th 2016, 11:28 pm

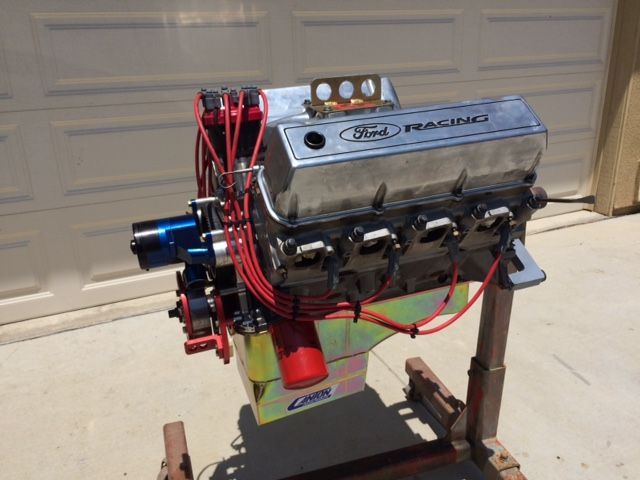

The description says Trick Flow A heads, the picture is not a of a TFS headed engine. ??? Am I missing something?

stanger68

Posts : 109
Join date : 2015-12-05
Location : Birmingham, Al

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  BBFTorino on August 21st 2016, 12:10 am

Ford Motorsports (now called Ford Racing), had Trick Flow cast the heads with the Ford Motorsports logo on the ends and a Ford style part number.
They are essentially the same as the TFS heads.

BBFTorino

Posts : 350
Join date : 2015-12-31

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on August 21st 2016, 2:18 am

stanger68 wrote:The description says Trick Flow A heads, the picture is not a of a TFS headed engine. ??? Am I missing something?

Youngster. .... There's a reason I stated '93   Laughing

I could have sated " '93 Ford Motorsport A-460 heads" but I assumed anyone would know that

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  rmcomprandy on August 21st 2016, 9:23 am

BBFTorino wrote:Ford Motorsports (now called Ford Racing), had Trick Flow cast the heads with the Ford Motorsports logo on the ends and a Ford style part number.
They are essentially the same as the TFS heads.

Not really true ... the intake ports are internally different when "out of the box" but, can be ported almost the same. And, the exhaust ports are in a slightly different location at 4.900" center to center.
The TFS BRAND heads have the exhaust ports at 4.840" center to center.

Not a problem to most people other than actuality but, they are different.

rmcomprandy

Posts : 4727
Join date : 2008-12-02
Location : Roseville, Michigan

View user profile http://www.rmcompetition.com

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on August 30th 2016, 11:34 pm


$ 7,900 OBO

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on September 13th 2016, 6:45 pm

Bump

Click to play:


G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  jgreene70 on September 15th 2016, 7:58 am

Man I'd like to have this to put in my 1970. By chance any interested in a swap? Has 533 SCJ-B head build

Thanks
avatar
jgreene70

Posts : 78
Join date : 2010-06-25
Age : 35
Location : Albany Ky

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  Paul Kane on September 15th 2016, 10:44 am

G-Code wrote:


You could serve a 7-Course meal on that Table-flat torque! Basketball
avatar
Paul Kane

Posts : 723
Join date : 2009-09-15
Location : San Francisco Bay Area

View user profile http://www.highflowdynamics.com

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on September 18th 2016, 3:13 pm

jgreene70 wrote:Man I'd like to have this to put in my 1970.   By chance any interested in a swap? Has 533 SCJ-B head build

Thanks

now why would I want to do that ????



9/16/2016 ............. Sold

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  G-Code on September 18th 2016, 3:16 pm

Paul Kane wrote:
G-Code wrote:


You could serve a 7-Course meal on that Table-flat torque! Basketball

the guy who purchased it yesterday is going to put it in an Off-road race truck with 39" tires and lots of suspension. He figures he's going to need all that Trq.

He was at the right place at the right time to get the engine at the price he did.   Lucky man


How are you doing, Paul. Hope all is well.

Jon

G-Code

Posts : 134
Join date : 2010-07-12

View user profile

Back to top Go down

Re: 528" Pump gas engine 840HP

Post  jgreene70 on September 19th 2016, 9:47 pm

G-Code wrote:
jgreene70 wrote:Man I'd like to have this to put in my 1970.   By chance any interested in a swap? Has 533 SCJ-B head build

Thanks

now why would I want to do that ????



9/16/2016 .............   Sold

Just throwing it out there man. Glad it sold for you. Only other thing would have been a custom 338 rifle.
avatar
jgreene70

Posts : 78
Join date : 2010-06-25
Age : 35
Location : Albany Ky

View user profile

Back to top Go down
