460  Lifter bore Blue Prints Empty 460 Lifter bore Blue Prints

Post  RGL July 18th 2010, 6:45 pm

was just wondering if anyone might have centerline locations ( possibly X and Y cordinates) for the lifter bores in relation to the dowels or bore centerline . I know (correct me ifi'm wrong) they are spaced 2.075" C to C on a 4.90" bore spacing . I am fixing to bush lifter bores , the bottom of the bore is worn excessively and i'm worried about pilot/reamer getting off track. I have two diffrent ideas on fixtures, and the best one needs these cordinates for me to make them. I cant get a block into my mill to probe these locations , was just wondering if anyone might have blue prints. the BHJ stuff is just outa my reach right now.

thanks for any help
RGL
RGL

Posts : 27
Join date : 2009-08-22

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  DaveMcLain July 19th 2010, 12:51 pm

We have that Prosys software here at the shop and I think it might have the block blue prints for the 460, I'll check.

DaveMcLain

Posts : 399
Join date : 2009-09-15

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  017stosh July 19th 2010, 5:36 pm

is this what you are looking for? if you need more dims i have a set of blueprints
460  Lifter bore Blue Prints Pictur27
stosh

017stosh

Posts : 57
Join date : 2009-01-04
Location : chesterfield Mi

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  017stosh July 19th 2010, 5:55 pm

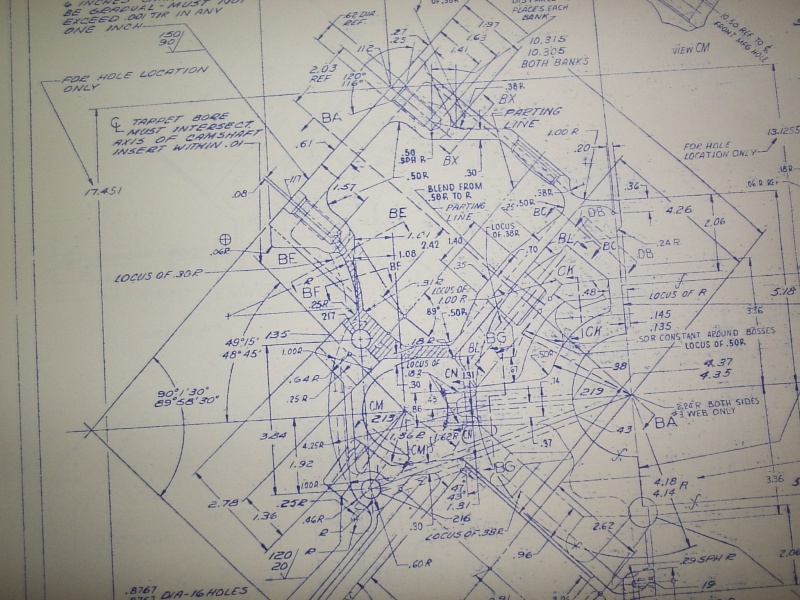

sorry here is the other side and angle for the lifter bores
460  Lifter bore Blue Prints Pictur29
460  Lifter bore Blue Prints Pictur30

017stosh

Posts : 57
Join date : 2009-01-04
Location : chesterfield Mi

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  BigBlockRanger July 19th 2010, 6:54 pm

Holy crap, you need to scan those to a pdf file!
BigBlockRanger
BigBlockRanger

Posts : 1267
Join date : 2008-12-02
Age : 54
Location : Amarillo

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  RGL July 19th 2010, 9:09 pm

I dont care what nobody says , you're a good man, LOL ! that is exactly what i was looking for. Just one question , trying to decode the 3rd blueprint , is the top of the lifter bore tilted in toward the head 4 deg's ?
RGL
RGL

Posts : 27
Join date : 2009-08-22

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  jones July 19th 2010, 10:44 pm

I'd love to have those to make a 3D model in the computer!

Do you have the dwg's with dim for the front?


jones

Posts : 2230
Join date : 2008-12-02
Location : Philadelphia, MS.

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  The Pope July 20th 2010, 6:43 am

RGL wrote:is the top of the lifter bore tilted in toward the head 4 deg's ?

Looks to be 3 to 4 degs of tilt toward the head.
The Pope
The Pope

Posts : 126
Join date : 2009-09-10
Age : 60
Location : Garner ( Raleigh N.C.)

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  The Pope July 20th 2010, 6:46 am

jones wrote:I'd love to have those to make a 3D model in the computer!

Do you have the dwg's with dim for the front?


A 3D model would be Very Nice!

Off topic : Jones, what 3D software package you running? I'm using Pro/Engineering WF4.
The Pope
The Pope

Posts : 126
Join date : 2009-09-10
Age : 60
Location : Garner ( Raleigh N.C.)

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  BigBlockRanger July 20th 2010, 9:12 am

Send them to me! I have a wide format (36") scanner!

Laughing
BigBlockRanger
BigBlockRanger

Posts : 1267
Join date : 2008-12-02
Age : 54
Location : Amarillo

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  dfree383 July 20th 2010, 9:18 am

Get them scanned in for real and make a stick post !!! with an attachment.

Who ever does a CAD 3D post that up to.

PLEASE
dfree383
dfree383
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 14852
Join date : 2009-07-09
Location : Home Wif Da Wife.....

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  jones July 20th 2010, 9:25 am

The Pope wrote:
jones wrote:I'd love to have those to make a 3D model in the computer!

Do you have the dwg's with dim for the front?


A 3D model would be Very Nice!

Off topic : Jones, what 3D software package you running? I'm using Pro/Engineering WF4.

I have to do all my 3D stuff old school, all I have is Autodesk 2007. I just play around.

jones

Posts : 2230
Join date : 2008-12-02
Location : Philadelphia, MS.

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  017stosh July 20th 2010, 9:34 am

ok guys. the set of blueprints i have are complete showing everything. i have no problem copying and sending them out. just don't want to lose sight of them. very handy to have.
stosh

017stosh

Posts : 57
Join date : 2009-01-04
Location : chesterfield Mi

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  jones July 20th 2010, 9:46 am

You got PM

jones

Posts : 2230
Join date : 2008-12-02
Location : Philadelphia, MS.

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  dfree383 July 20th 2010, 9:56 am

017stosh wrote:ok guys. the set of blueprints i have are complete showing everything. i have no problem copying and sending them out. just don't want to lose sight of them. very handy to have.
stosh

Have them scanned in and Email them !!! Don't Hard Copy !!!!
dfree383
dfree383
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 14852
Join date : 2009-07-09
Location : Home Wif Da Wife.....

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  DaveMcLain July 20th 2010, 10:13 am

Those are the same prints as the ones in the Prosys data.


DaveMcLain

Posts : 399
Join date : 2009-09-15

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  jones July 20th 2010, 10:35 am

DaveMcLain wrote:Those are the same prints as the ones in the Prosys data.


What is this Prosys you speak of?

jones

Posts : 2230
Join date : 2008-12-02
Location : Philadelphia, MS.

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  DaveMcLain July 20th 2010, 11:47 am

Prosys is a software program that's put out by A.E.R.A. which has lots of engine rebuilding data, sizes, specs etc. It's sort of handy sometimes and when I was looking around and checking it out I found those prints. I think they also have them for the Ford small block engines too.


DaveMcLain

Posts : 399
Join date : 2009-09-15

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  The Pope July 20th 2010, 3:27 pm

BigBlockRanger wrote:Send them to me! I have a wide format (36") scanner!

Laughing

You got to do better than that! I have access to one that will handle 48"! Cool
The Pope
The Pope

Posts : 126
Join date : 2009-09-10
Age : 60
Location : Garner ( Raleigh N.C.)

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  BigBlockRanger July 20th 2010, 4:25 pm

lol I don't care who does it, but it would be killer to have a copy of it! bounce
BigBlockRanger
BigBlockRanger

Posts : 1267
Join date : 2008-12-02
Age : 54
Location : Amarillo

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  The Pope July 21st 2010, 6:44 am

BigBlockRanger wrote:lol I don't care who does it, but it would be killer to have a copy of it! bounce

Same here!
The Pope
The Pope

Posts : 126
Join date : 2009-09-10
Age : 60
Location : Garner ( Raleigh N.C.)

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  017stosh July 21st 2010, 8:50 am

found a big enough scanner. should have something by the the first of the week.
stosh

017stosh

Posts : 57
Join date : 2009-01-04
Location : chesterfield Mi

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  72mav July 21st 2010, 3:12 pm

It pays to live in "FORD-LAND!! Smile Razz
72mav
72mav

Posts : 1081
Join date : 2008-12-03
Age : 61
Location : central Michigan

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  billandlori July 21st 2010, 3:40 pm

Here we are in a battle of "My scanner is bigger that your scanner!!" lol

Bill
billandlori
billandlori

Posts : 2081
Join date : 2009-08-06
Age : 55
Location : Stratford, Ontario, Canada

Back to top Go down

460  Lifter bore Blue Prints Empty Re: 460 Lifter bore Blue Prints

Post  Doug Rahn July 21st 2010, 5:18 pm

If possible I would like to have a copy myself.
Doug Rahn
Doug Rahn
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 1680
Join date : 2009-08-07
Age : 73
Location : Springfield, GA

http://www.cardomain.com/ride/228081
