Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:24 pm

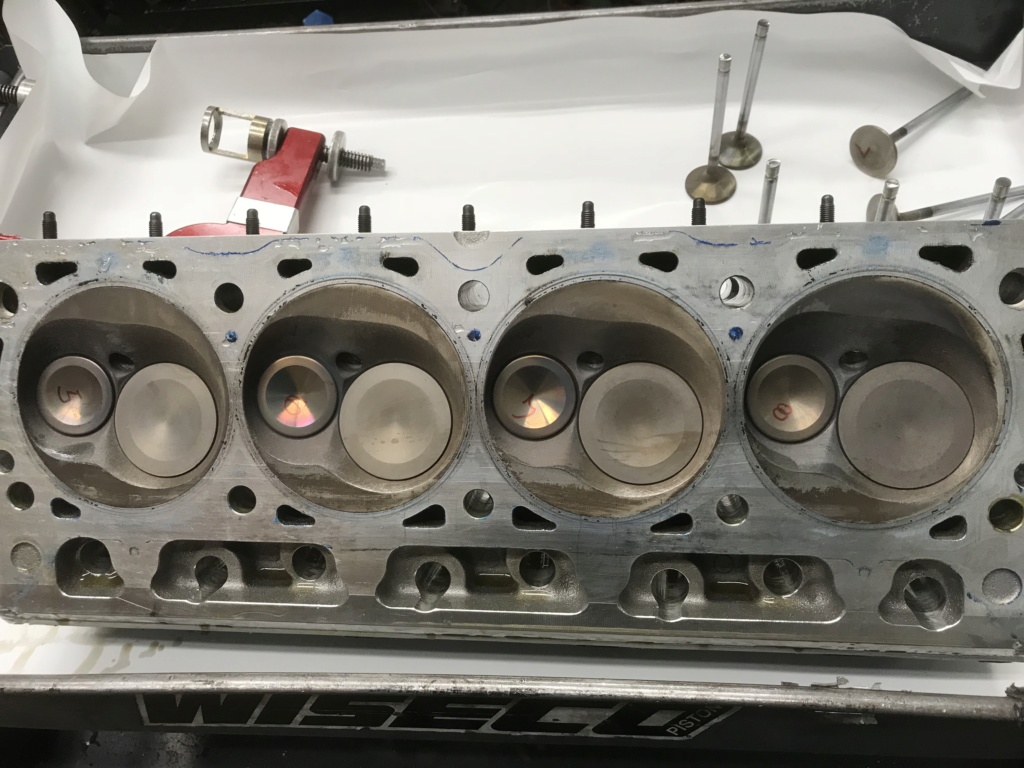

The AFR heads have different valve locations than the Ford SCJ and P-51. I took the easy way and cut the intake pockets in the block. Not pretty but it works great and I was able to run two different size engines this weekend, cutting pistons in both

Go back to the end of page 3 for the first picture


Last edited by jonkaase on November 4th 2018, 7:03 pm; edited 1 time in total (Reason for editing : make clearer)

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:27 pm




jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:30 pm



jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:32 pm



The lower pierce points are the AFR heads. The uppers are SR-71

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:40 pm





Everything I ran used both an 1150 and then a big billet carb from Bob Book {BRE}
all tests used dyno headers from Hedman, 2 1/4". They were for big block Chevy and we put the SCJ/P-51 flanges on them

in all cases the carb was 10-15HP better

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 6:45 pm





Switching the heads out from the 598 to the 521

Then the 521 on the dyno

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 7:01 pm



The AFR 315 is the best they offer that I know of. I bought them from Motor State for the purpose of dyno testing.

We ran the heads on our 598 and 521 test engines and beat on them pretty hard to find the best timing and jetting.

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 7:21 pm

It will be tomorrow before I can get all these dyno sheets organized and posted.

We ran both engines with the AFR 315's and manifold, the P-51's with the Trick Flow manifold, and the SR71's with the Trick Flow intake.

The AFR heads uses only their intake manifold, as the ports are rectangular but also the port spacing is way different than all the Ford SCJ style heads.
"
Ford heads are 4.8" from cyl 1 to 2, then 5.0" from 2 to 3, then 4.8" from 3 to 4 (no they are not evenly spaced)

AFR heads are 4.65" then 5.2", then 4.65"

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 4th 2018, 7:24 pm

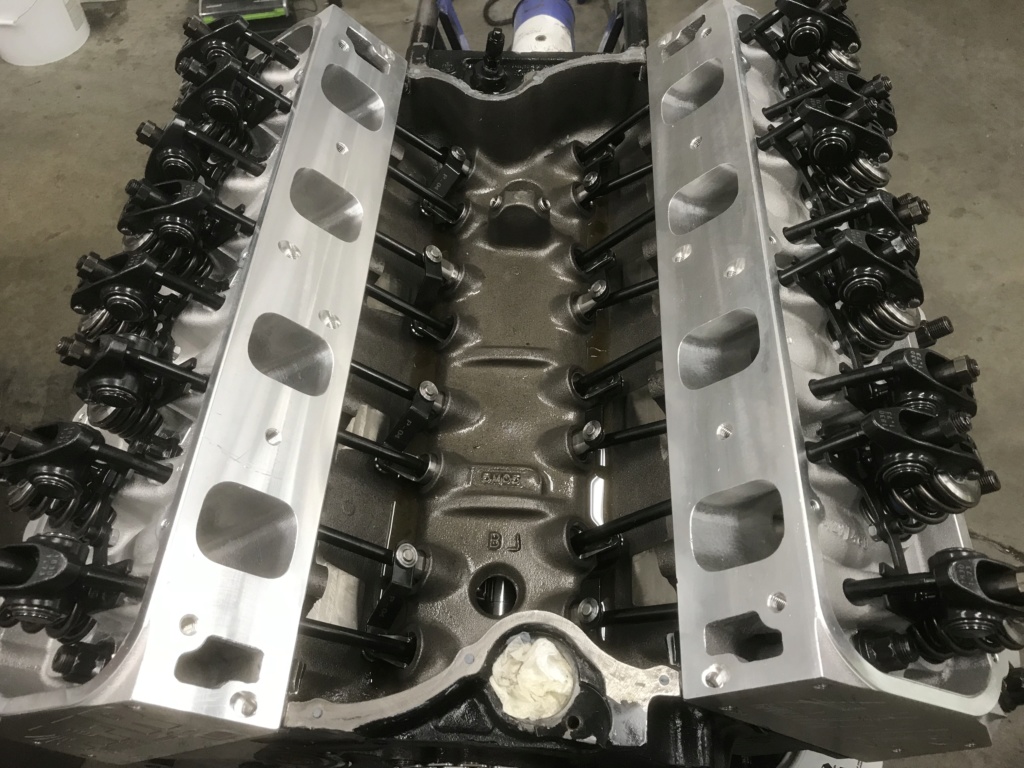

In the one picture you can see the Fel-Pro 1231 gaskets on the intake surface. I lost the gaskets that came with the manifold! But you can see why the SCj intakes would have a huge mismatch.

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  nascar429 on November 4th 2018, 8:50 pm

All i can say is WOW!!!!! Shocked Shocked Twisted Evil Twisted Evil Cool CoolVery Happy Very Happy  ...

I will not get a wink of sleep till i see the results!!!..Shocked Shocked Very Happy Very Happy

nascar429

Posts : 68
Join date : 2015-11-08

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  Mark Miller on November 5th 2018, 12:58 am

jonkaase wrote: It will be tomorrow before I can get all these dyno sheets organized and posted.

We ran both engines with the AFR 315's and manifold, the P-51's with the Trick Flow manifold, and the SR71's with the Trick Flow intake.

The AFR heads uses only their intake manifold, as the ports are rectangular but also the port spacing is way different than all the Ford SCJ style  heads.
"
Ford heads are 4.8" from cyl 1 to 2, then 5.0" from 2 to 3, then 4.8" from 3 to 4  (no they are not evenly spaced)

AFR heads are 4.65" then 5.2", then 4.65"


Jon,can't wait for the dyno results thanks for all the pictures and information!!! Smile

Mark Miller

Posts : 1361
Join date : 2009-09-01

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  boss9coupe on November 5th 2018, 12:33 pm

This is going to be Epic!!!!! Shocked Shocked Twisted Evil  Twisted Evil  Very Happy Very Happy   can't wait to see the results of what i believe will be an unbiased fair test.

After 4 revision's from the Original factory iron CJ head design under Jon's guidance..i think we have reached the peak of the Cobra Jet head Evolution..

Thanks to Jon,  I believe the SR-71 is going to be a Game Changer!...Especially for guys that really want to chase some serious HP without cutting up there classic old muscle car engine bays.

boss9coupe

Posts : 28
Join date : 2009-08-08
Age : 51

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 1:48 pm





This is the 521. The AFR tests were this weekend, 60 degrees outside with .5 vapor pressure
the P-51 and SR-71 tests were early Sept, 95 degrees and .75 vapor pressure. The correction usually does well with these types of engines.

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 1:51 pm




Here are the 598 tests. I will give the specs on the engines shortly

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 2:20 pm

Lets start with the 521"
This engine came to us from Ford Motorsport in 1999 in the form of a CJ crate engine. We used it when testing the original SCJ heads that we sold to Ford. Then the P-51 testing followed by all the Boss 9 testing. It is the Finger in the Port engine that had all the videos done for my AETC presentation, as well as anything we have ever needed to run and punish. Then came all the SR-71 tests. It was a re-manufactured block when Ford supplied it. I would like to know the history of this block before Ford got it!
It is a 70 block with main studs and 8 lifter bushings. no fill. The bore is 4.390, (+.030")
Callies 4.3 crank, Lunati 6.8 rods, The cam is Comp 273-280, 109CL  .460" lobe, 1.73 Comp  rockers.
Pistons are Diamond shelf flat top with 1/16, 1/16, 3/16 rings. No gas ports. .020" deck clearance. It's all pretty tame stuff
Compression is 12.4


Last edited by jonkaase on November 5th 2018, 2:37 pm; edited 1 time in total

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 2:37 pm

The 598.

It's a Ford Motorsport block, 4.600 bore. stock babbit cam bearings.
Lunati 4.500 crank, Lunati 6.7 rods. Diamond flat top pistons with side gas ports, .043, .043, 3MM rings
Compression is 14.9. It has .008" deck and .040 Cometic gasket. The cam is Comp, 285-298, 112CL, .471" lobe with 1.73 Comp rockers

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  windsor on November 5th 2018, 2:43 pm

Impressive, Mr. Kaase, very impressive.

Was any porting done to the P-51 or SR-71 heads?
avatar
windsor

Posts : 1139
Join date : 2009-08-09
Location : St. Pete/Northern Va.

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 2:50 pm

They are as cast except we always hand grind right under the seats where the valve job ends and the aluminum starts.

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 2:51 pm


The 1150 carb used on the 521 tests

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 3:03 pm




Testing with the SR-71. When these heads are used on a 4.390 bore we have to reduce the exhaust valve size so it doesn't scrape the edge of the bore. The seat work on the head stays the same and the valve just  has a narrower seat. Here I back to backed the two different exhaust valve sizes to  make sure that there was no power loss with the smaller and narrower valve seat

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 3:10 pm



Hose to Vacuum pump, and SR-71, 521" on dyno

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  boss9coupe on November 5th 2018, 5:28 pm

What an Awesome 'Clash of the Titan's' .. I think it's safe to say the Bar has been set to almost Tower of Babel status by the SR-71 head..

And you can only imagine what a max effort 2x4 sheet metal, ported heads etc.. are going to do.. Shocked Shocked Twisted Evil Twisted Evil Very Happy Very Happy you gotta love it..

It was interesting that the AFR headed deal flat lined at 6400RPM till 7000rpm..

And the P51 did surprisingly well in the high RPM Range to give it's big brother a run for it's money..


Last edited by boss9coupe on November 5th 2018, 5:49 pm; edited 1 time in total

boss9coupe

Posts : 28
Join date : 2009-08-08
Age : 51

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  dfree383 on November 5th 2018, 5:46 pm

Thanks for Sharing Jon, Your work is outstanding.
avatar
dfree383
BBF CONTRIBUTOR
BBF CONTRIBUTOR

Posts : 14174
Join date : 2009-07-09
Location : Home Wif Da Wife.....

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  boss9coupe on November 5th 2018, 6:07 pm

dfree383 wrote:Thanks for Sharing Jon, Your work is outstanding.


I gotta agree with Dave .. I'm so glad your on our team..

boss9coupe

Posts : 28
Join date : 2009-08-08
Age : 51

View user profile

Back to top Go down

Re: Jon Kaase SR71 Cylinder Heads

Post  jonkaase on November 5th 2018, 6:23 pm



I have run this HRE intake already

The plan is to see how much power we can make with mostly unported heads. So I have another cam coming with more ex duration and wider lobe center. It's 287-310, 115 CL, .483" lobes. Also raise the compression to 16+

So the goal here is to make 1200 HP with unported heads and stud rockers... Wish I had a 4.750 crank for it!

jonkaase

Posts : 81
Join date : 2009-08-10

View user profile

Back to top Go down
